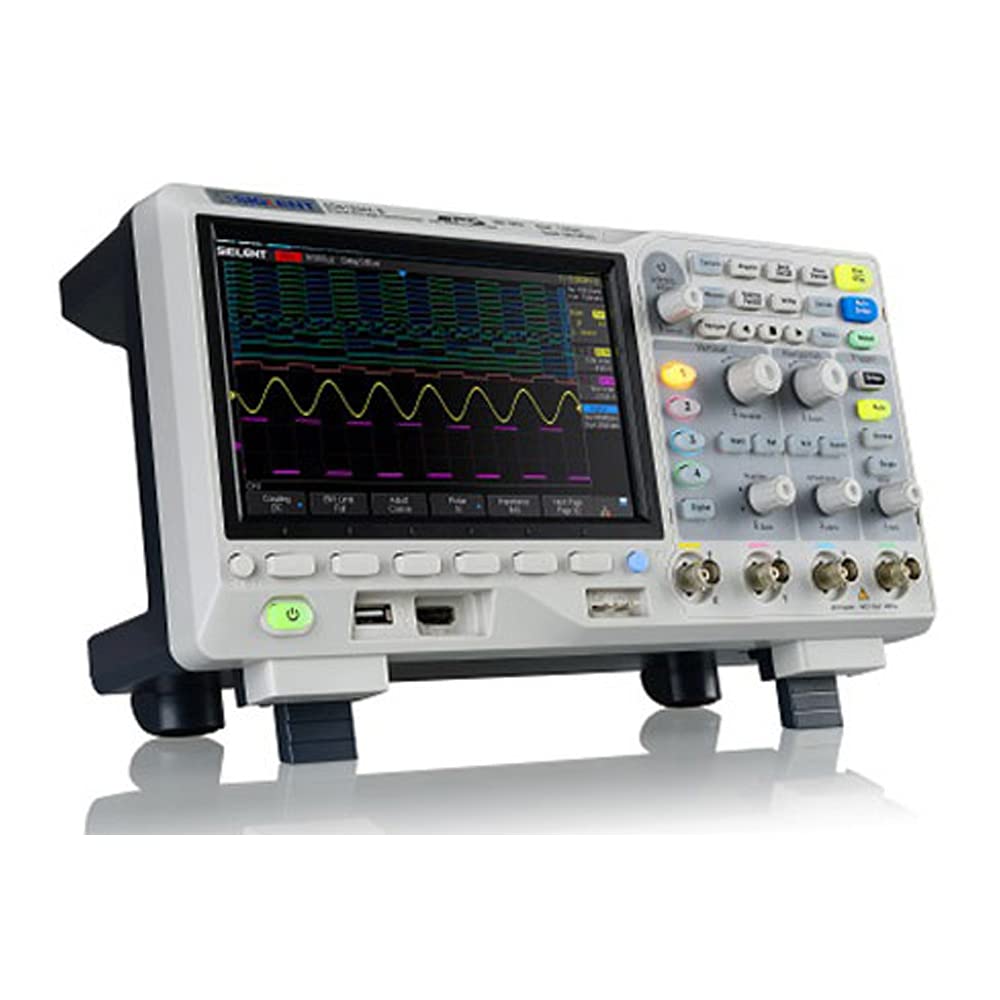

Siglent Technologies SDS1104X-E 100Mhz Digital Oscilloscope 4 Channels Standard Decoder, Grey
As a budding electronics enthusiast, I remember the first time I laid my hands on a digital oscilloscope. The myriad of waveforms dancing across the screen was mesmerizing. Fast forward to today, I found myself exploring the Siglent Technologies SDS1104X-E, a digital oscilloscope that promises to elevate my experiments to new heights. With its sleek design and robust features, this device has become a staple in my toolkit.
Intriguing Facts About the SDS1104X-E
- It boasts a bandwidth of 100 MHz, making it suitable for a wide range of applications.
- The oscilloscope features four channels, allowing simultaneous signal analysis.
- It includes a standard decoder for serial protocols, enhancing its versatility.
- Its large display offers a clear and detailed view of waveforms, ideal for in-depth analysis.
Provocative Question
Have you ever wondered what separates a good oscilloscope from a great one? Is it the features, the design, or perhaps the user experience?
Bringing the SDS1104X-E to Life
Imagine a sleek, grey device sitting on your workbench, its screen glowing with vibrant waveforms. The Siglent SDS1104X-E not only looks professional, but it also feels robust and ready for action. With its intuitive interface and responsive controls, it’s designed to make your experiments not just effective, but also enjoyable.
Product Analysis
Feature Overview
- Bandwidth: With a bandwidth of 100 MHz, this oscilloscope can handle a variety of signals, from simple sine waves to complex digital signals.
- Sampling Rate: It offers a maximum sampling rate of 1 GSa/s, ensuring that you capture every nuance of your signal.
- Memory Depth: A memory depth of 24 Mpts allows for long captures, making it easier to analyze transient events.
- Decoding Capabilities: The built-in standard decoder supports various serial protocols, including I2C, SPI, and UART, adding to its functionality.
Advantages of the SDS1104X-E
- High-resolution display enhances visibility.
- Multiple channels facilitate complex analysis.
- Affordable pricing compared to competitors with similar features.
- User-friendly interface reduces the learning curve.
Strengths and Weaknesses
Strengths
- Exceptional performance for its price point.
- Versatile functionality with multiple decoding options.
- Solid build quality and design.
Weaknesses
- Some users report a steep learning curve for advanced features.
- Limited customer support options compared to higher-end brands.
Design and Build Quality
The SDS1104X-E features a modern and professional design, with a sturdy chassis that can withstand the rigors of a busy work environment. The buttons are well-placed and responsive, making navigation a breeze. The large display is not only functional but also adds an aesthetic appeal to the device.
Comparative Analysis
Similar Products
When comparing the SDS1104X-E to competitors like the Rigol DS1104Z and Tektronix TBS1052B, it stands out in several areas:
| Feature | SDS1104X-E | Rigol DS1104Z | Tektronix TBS1052B |
|---|---|---|---|
| Bandwidth | 100 MHz | 100 MHz | 50 MHz |
| Channels | 4 | 4 | 2 |
| Memory Depth | 24 Mpts | 24 Mpts | 1 Mpts |
| Price | $399 | $349 | $399 |
Usability and Setup
The setup process for the SDS1104X-E is straightforward. After unboxing, connecting the probes, and powering it up, users can quickly navigate through the menu options. The learning curve is minimal for basic features, making it accessible for beginners.
Expert Opinions
“The SDS1104X-E offers an incredible balance of performance and price. It’s an excellent choice for both hobbyists and professionals.” – Electronics Expert
Real-Life Performance
In real-life scenarios, the SDS1104X-E performs admirably. Whether I was troubleshooting a circuit or visualizing complex waveforms, the oscilloscope delivered precise readings with minimal noise. The decoding capabilities proved invaluable when working with serial communication protocols.
Strengths and Weaknesses Recap
Overall, the strengths of the SDS1104X-E include its exceptional performance, versatile decoding capabilities, and user-friendly interface. However, the learning curve for more advanced features and limited customer support options are areas for improvement.
Price Point and Value for Money
At a price of around $399, the SDS1104X-E offers excellent value for money. Given its features and performance, it competes well against other products in the market.
Customer Support and Warranty
Siglent Technologies provides a standard warranty and return policy, ensuring peace of mind for buyers. However, customer support options could be enhanced to better assist users.
Where to Purchase
The SDS1104X-E is available for purchase through various online retailers, including Amazon, Digi-Key, and the official Siglent website.
Recap of Key Points
In summary, the Siglent Technologies SDS1104X-E is a powerful and versatile digital oscilloscope that caters to both beginners and seasoned professionals. With its impressive features, user-friendly design, and competitive pricing, it stands out as a top choice in its category. Whether you’re troubleshooting circuits or delving into complex signal analysis, this oscilloscope is sure to enhance your electronic projects.
